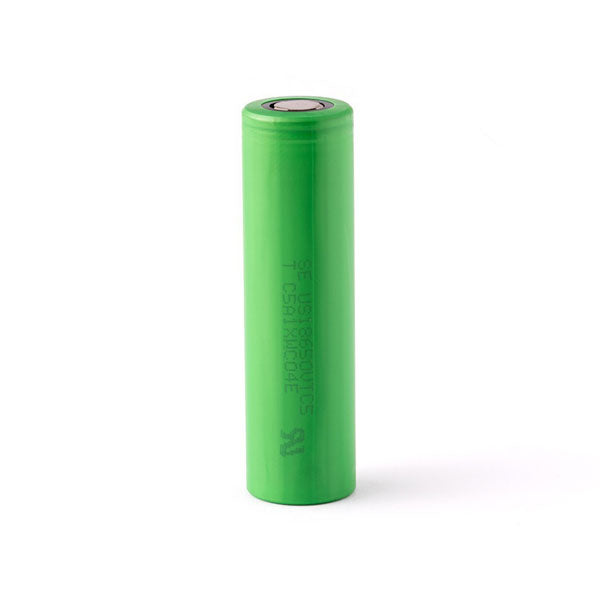

Sony VTC5A 18650 2500mAh 25A 3.6V Battery Flat top
100% GUARANTEED ORIGINAL CELL. WE DO NOT SELL CLONE BATTERIES, ALL SOURCED FROM VERIFIED DISTRIBUTORS.
- Model: US18650VTC5A
- Typical capacity: 2500mAh
- Full Charge Voltage: 4.2V
- Nominal Voltage: 3.6
- Operating temperature: Charging 0°C ~45°C, discharging: -20°C ~ 60°C
- Storage temperature: -5°C ~ 35°C
- Please properly dispose of battery if it gets too hot
- Standard charge: CC/CV, 0.2C, 4.2V
- Standard discharge: CC, 0.2C, 2.5V
- End-of-charge voltage: 4.2V +/-0.05V
- End-of-charge current: 0.02C (About 62mA)
- End-of-discharge voltage: 2.00V
- Continuous maximum discharge: 5C/10C (15A/30A) with temp cutoff at 80°C
- Max. discharge current vs. time: 30A-40A > 44s, 55A > 19s, 80A > 6s (Never discharge above 80°C)
- Do NOT charge unattended
- Do NOT leave unattended after fully charging
- Exact Dimensions: [H] 65.20 mm [D] 18.50 mm (+/- 0.3 mm)
- Weight: 47g
- Positive terminal: Flat Top
- External Electronic Protection: No (unprotected)
- Do NOT short.
- Do NOT leave unattended when charging.
- Do NOT leave unattended immediately AFTER charging.
- Do NOT carry in your pocket or purse unless they are in a secure non-conductive carry case.
- They are not toys. Do not let your children or pets play with them.
- Do NOT recharge with cheap chargers that keep on trickle charging after the normal cycle or that do not follow the Constant Current / Constant Voltage (CC/CV) algorithm properly. If you have any doubt about the suitability of your current charger to properly charge these batteries, please ASK us first !
